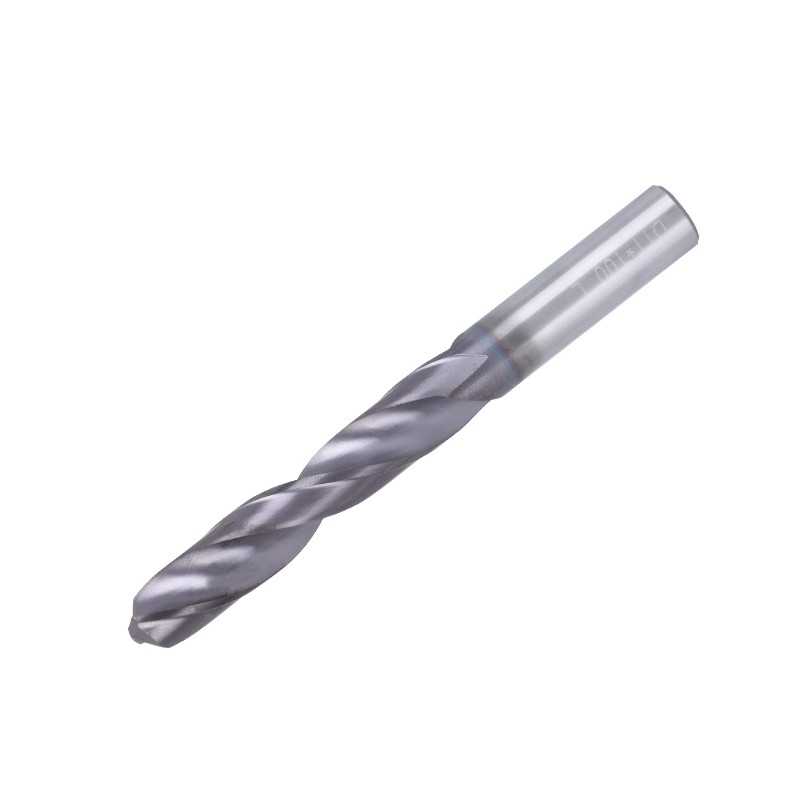

53AN50 Coolant-Through Solid Carbide Jobber-Length Drill Bits

$47.94

Bulk orders will be discounted, please contact us.

These drill bits come in sizes expressed in millimeters. They have a TiAlN coating that withstands high temperatures and protects the bits from wear during high-speed, dry machining applications with difficult-to-machine ferrous metals. The bits have spiral flutes that evacuate chips as the bits drill into a workpiece, and they have a straight shank that installs into a drill chuck or similar toolholder.

Product Number: 53AN50

Add to Wishlist Add to Compare

SEND INQUIRY

  • Description
Mfr Model DC150-03-05.200A1-WJ30RE
Measurement System Metric
Drill Bit Size 5.20 mm
Decimal Equivalent 0.2047
Maximum Drilling Depth 20 mm
Overall Length 66.00 mm
Shank Diameter 6 mm
Shank Type Machining Straight
Finish Machining TiAlN
Material Machining Carbide
Primary Material Application Aluminum; Brass; Bronze; Cast Iron; Copper; Nickel; Steel; Titanium
UNSPSC 27112801
Country of Origin China (subject to change)
Cutting Direction Right Hand
Flute Length 28.00 mm
Flute Type Spiral
Standards DIN 6537 K
Series Perform
Drill Bit Point Angle 140 °
Drill Bit Point Type Split Point
Number of Flutes 2
Spiral Direction Right Hand
Helix Angle 25°
Depth Dia Ratio 3xD
Primary Material Application ISO Code K; N; P; S
Material Grade Machining WJ30RE
Drill Length Class Jobber Length
Sheeter Drill No
Drill Point Length 0.946mm
Shank Length 36 mm
Coolant Fed Coolant Through
Drill Diameter Tolerance M7
Secondary Material Application Composite; Hardened Steel; Stainless Steel
Secondary Material Application ISO Code H; M; O
Number of Coolant Holes 2
Web Construction Split
