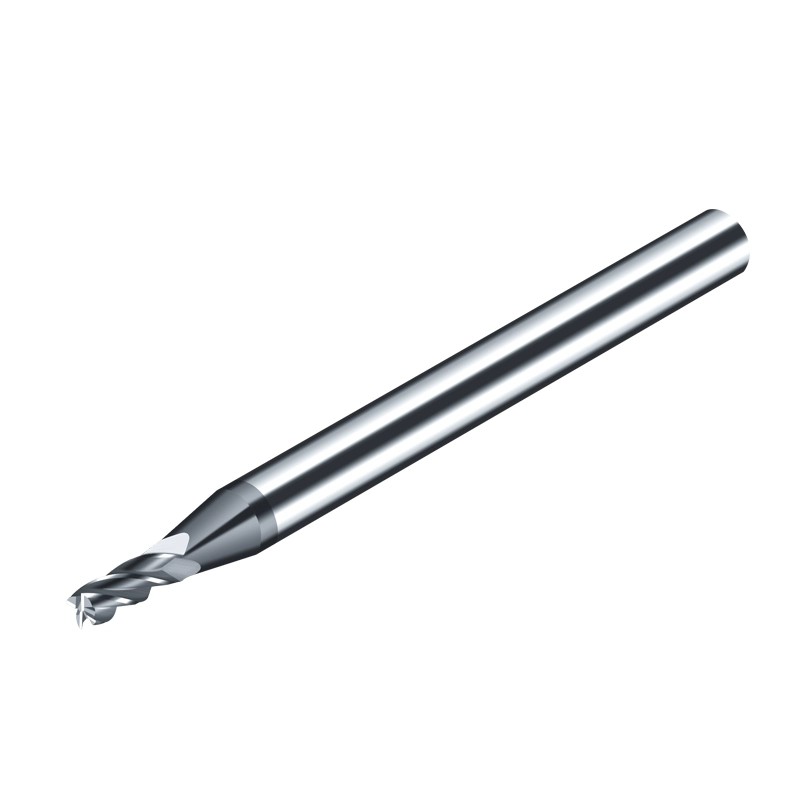

14K575 Miniature General Purpose Carbide Square End Mills

$15.04

Bulk orders will be discounted, please contact us.

The AlTiN coating on these end mills protects them from wear and is more resistant to high heat than TiN, TiCN, and TiAlN coatings. AlTiN-coated end mills are used for milling hard and abrasive materials. Finishing end mills create a finer finish on the workpiece than roughing and roughing/finishing end mills. Miniature end mills have a smaller diameter and provide more precision and better control over material removal during detailed milling tasks than standard end mills.

Product Number: 14K575

Add to Wishlist Add to Compare

SEND INQUIRY

  • Description
Mfr Model RMEM-025-2X
Material Machining Carbide
Finish Machining AlTiN
Measurement System Metric
Milling Dia 2.50 mm
Length of Cut 8.00 mm
Overall Length 38.00 mm
Shank Dia 3.00 mm
Shank Type Machining Straight
End Mill Style Square
Number of Flutes 2
End Mill Application Finishing
Drilling Tool Configuration Individual
End Mill Cutting Type Center Cutting
List Number RMEM
Material Grade Machining C2 Micrograin
Primary Material Application Cast Iron; Hardened Steel; Stainless Steel; Steel; Tool and Die Steel
Primary Material Application ISO Code H; K; M; P
UNSPSC 23172005
Country of Origin USA (subject to change)
Material Applications Cast Iron; Hardened Steel; Stainless Steel; Steel
Flute Type Spiral
Spiral Direction Right Hand
Coolant Fed Non-Coolant Through
Secondary Material Application General Purpose
Helix Angle 30 °
Cutting Direction Right Hand
Neck Length 0 in
Neck Dia 0 in
