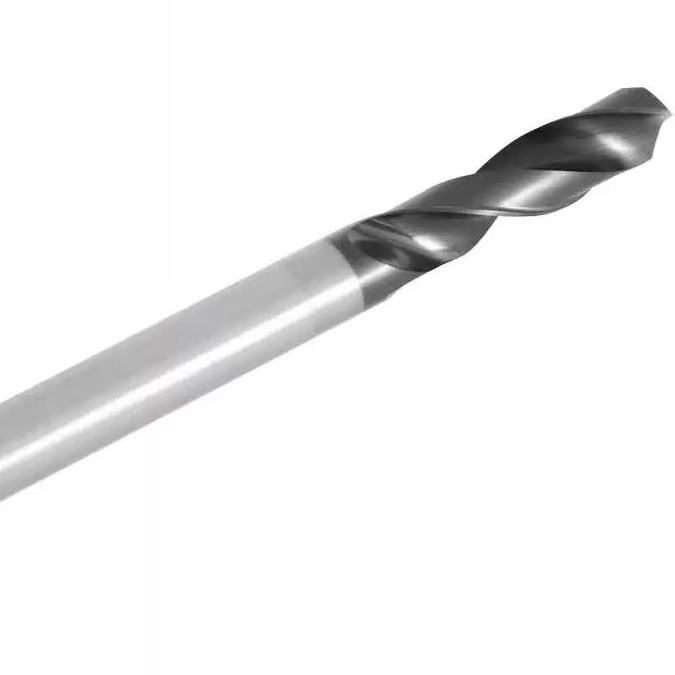

2MFJ4 High-Speed Steel Screw-Machine Length Drill Bits

$9.77

Bulk orders will be discounted, please contact us.

The TiN coating on these drill bits protects them from wear and heat when drilling steel, stainless steel, and aluminum. The bits' spiral flutes evacuate chips as the bits drill into a workpiece.

Product Number: 2MFJ4

Add to Wishlist Add to Compare

SEND INQUIRY

  • Description
Mfr Model 61510
Measurement System Metric
Drill Bit Size 1.00 mm
Decimal Equivalent 0.0394
Overall Length 38.00 mm
Shank Diameter 3 mm
Shank Type Machining Straight
Finish Machining TiN
Material Machining High Speed Steel
Primary Material Application Aluminum; Stainless Steel; Steel
UNSPSC 27112801
Country of Origin Japan (subject to change)
Cutting Direction Right Hand
Flute Length 6.00 mm
Flute Type Spiral
Standards Not Rated
Drill Bit Point Angle 140 °
Drill Bit Point Type 4 Facet Point
Number of Flutes 2
Spiral Direction Right Hand
Helix Angle 28 °
Depth Dia Ratio 3xD
Primary Material Application ISO Code M; N; P1
Material Grade Machining High Performance
Drill Length Class Screw Machine Length
Sheeter Drill No
Drill Point Length 1.26 mm
Shank Length 32.00 mm
Coolant Fed Non-Coolant Through
Drill Diameter Tolerance +0.000/-0.014mm
Secondary Material Application Medium Carbon Steel; Stainless Steel
Secondary Material Application ISO Code M; P2
