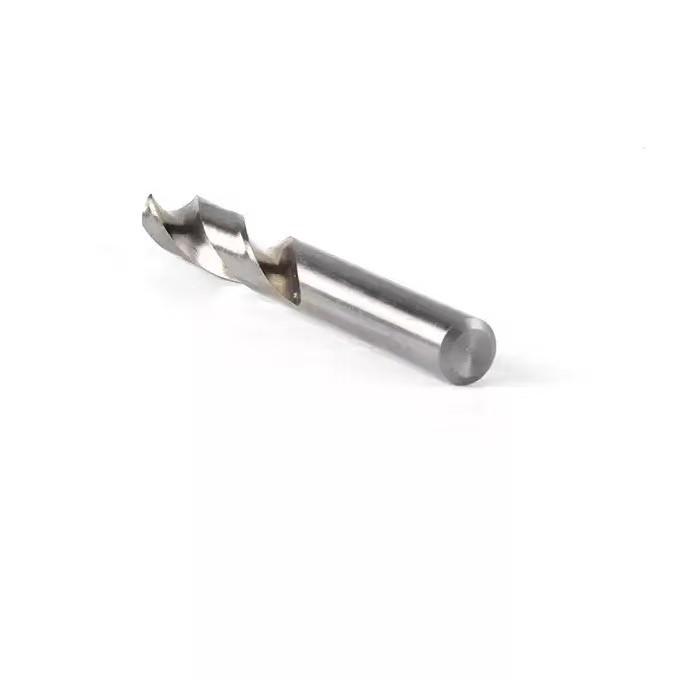

2VUP4 Cobalt Screw-Machine Length Drill Bits

$14.37

Bulk orders will be discounted, please contact us.

These drill bits have a TiAlN coating that withstands high temperatures and protects the bits from wear during high-speed, dry machining applications with difficult-to-machine ferrous metals. Parabolic-flute drill bits have wide, deep flutes that improve chip flow and heat dissipation, which means feed rates do not need to be reduced as the drill moves deeper into the workpiece.

Product Number: 2VUP4

Add to Wishlist Add to Compare

SEND INQUIRY

  • Description
Mfr Model C15102
Measurement System Wire
Drill Bit Size #12
Decimal Equivalent 0.1890
Overall Length 2-1/4 in
Shank Diameter 3/16 in
Shank Type Machining Straight
Finish Machining TiAlN
Material Machining Cobalt
Primary Material Application Cast Iron; Stainless Steel
UNSPSC 23171609
Country of Origin USA (subject to change)
Cutting Direction Right Hand
Flute Length 1-3/16 in
Flute Type Parabolic
Standards ASME B94.11M
Drill Bit Point Angle 135 °
Drill Bit Point Type Split Point
Number of Flutes 2
Spiral Direction Right Hand
Helix Angle 40 °
Depth Dia Ratio 10xD
Primary Material Application ISO Code K; M
Material Grade Machining M42
Drill Length Class Screw Machine Length
Sheeter Drill No
Drill Point Length 0.0391 in
Shank Length 1-1/16 in
Coolant Fed Non-Coolant Through
Drill Diameter Tolerance +0.0000 in /-0.0007 in
Secondary Material Application Aluminum; Cast Iron; Hardened Steel; High Carbon Steel; Stainless Steel
Secondary Material Application ISO Code H; K; M; N; P
