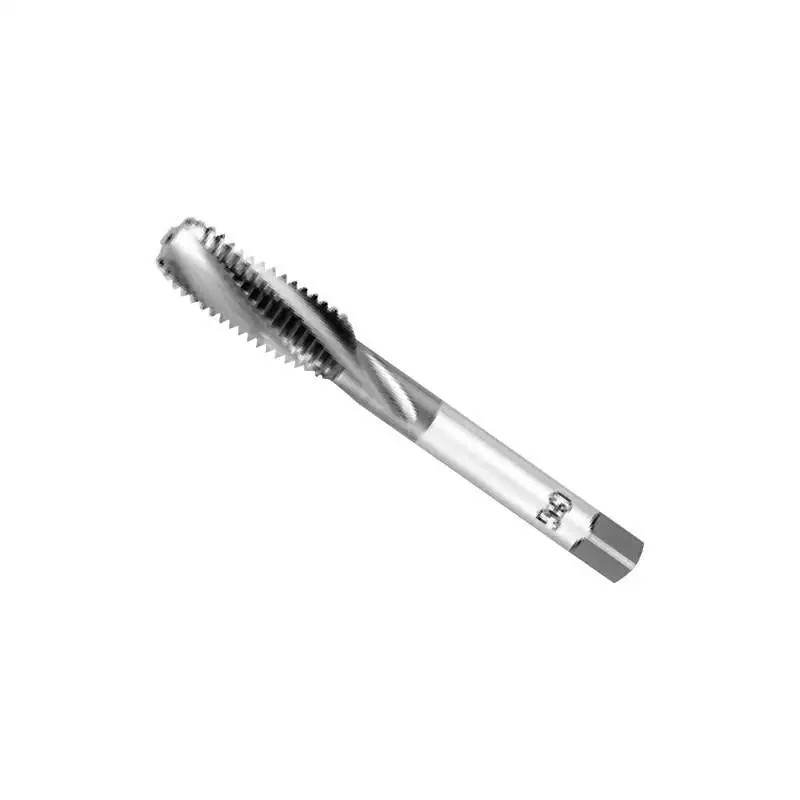

33XR44 High-Performance Spiral-Flute Taps for Cast Iron

$113.56

Bulk orders will be discounted, please contact us.

The bright finish on these taps provides a smooth, polished surface.

Product Number: 33XR44

Mfr Model	8315267
Thread Size	M5x0.8
Tap Material	High Speed Steel
Tap Finish	Bright (Uncoated)
Thread Length	15.00 mm
Overall Length	59.00 mm
Thread Limit	OH3
Number of Flutes	3
Tap Length Standard	JIS
Tap Shank Standard	JIS
Primary Material Application	Aluminum; Brass; Bronze; Cast Iron; Copper
Thread Direction	Right Hand
Coolant Fed	Non-Coolant Through
Drill Bit Size	4.17mm; 4.22mm; 4.27mm; 4.32mm; 4.38mm
Extended Neck	Yes
Helix Angle	15 °
Material Grade Machining	Bright; Carbide
Measurement System	Metric
Primary Material Application ISO Code	K; N
Shank Dia	5.50 mm
Shank Length	35.10 mm
Square Size	4.50mm
Standards	DIN 374
Tap Chamfer	Bottoming
Tap Style	Spiral Flute
Tap Thread Size	M5x0.80
UNSPSC	23153305
Country of Origin	Japan (subject to change)
Thread Standard	Metric Coarse
Features	Micrograin carbide body; Modified Bottom; Provides High hardness with improved wear resistance and Increased production levels with longer tool life.; Provides versatile use in both through and blind hole applications; Superior hardness and wear resistance versus High Speed Steel; TiCN and Tail coatings available upon requests
Shank Type Machining	Straight
Spiral Direction	Right Hand
Thread Pitch	0.80mm
