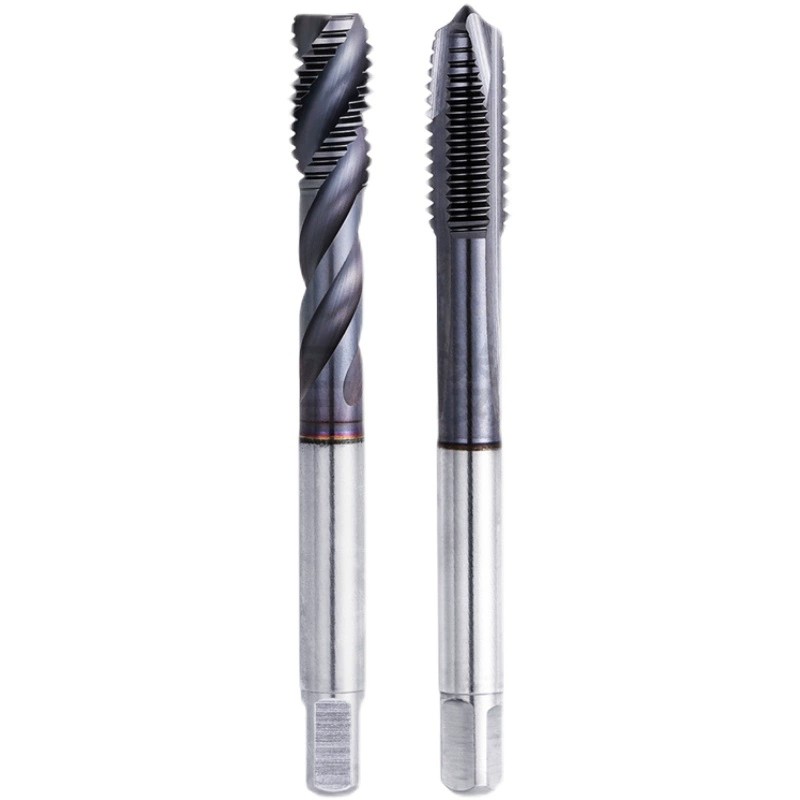

33XZ80 High-Performance Spiral-Point Taps for Aluminum

$18.86

Bulk orders will be discounted, please contact us.

The nitride coating on these taps creates a thin, wear-resistant, hard shell that protects the taps when threading abrasive and tough materials such as high-silicon cast aluminum. These taps meet DIN length standards and have a longer overall length than taps that meet ISO, ANSI, and JIS length standards. They also meet ANSI shank standards, which means they measure their shank diameter in inches and fit in standard tools used in the U.S.

Product Number: 33XZ80

Add to Wishlist Add to Compare

SEND INQUIRY

  • Description
Mfr Model 1101601803
Thread Size 7/16"-20
Tap Material HSS-E
Tap Finish Black Oxide
Thread Length 13/16 in
Overall Length 3-29/32 in
Thread Limit H3
Number of Flutes 3
Tap Length Standard DIN
Tap Shank Standard ANSI
Primary Material Application Aluminum
Thread Direction Right Hand
Coolant Fed Non-Coolant Through
Drill Bit Size 0.3855 in; 0.3888 in; 0.3920 in; 0.3953 in; 0.3985 in
Extended Neck No
Measurement System Fractional Inch
Primary Material Application ISO Code N
Shank Dia 5/32 in
Shank Length 2-5/8 in
Square Size 0.2420 in
Tap Chamfer Plug
Tap Thread Size 7/16"-20
Threads per Inch 20
UNSPSC 23153305
Country of Origin Mexico (subject to change)
Thread Standard UNF
Shank Type Machining Straight
Spiral Direction Neutral
Class of Fit 6H
