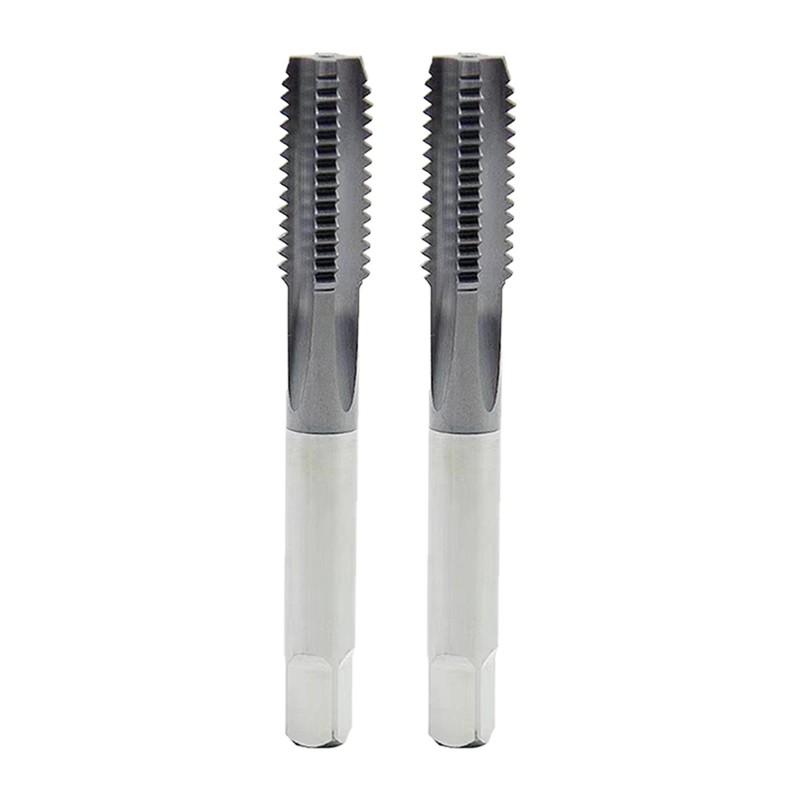

33YJ62 Powdered-Metal Straight-Flute Hand Taps

$59.99

Bulk orders will be discounted, please contact us.

These taps meet DIN length standards and have a longer overall length than taps that meet ISO, ANSI, and JIS length standards. They also meet ANSI shank standards, which means they measure their shank diameter in inches and fit in standard tools used in the U.S. The TiCN coating on these taps protects them from wear and is harder and more wear-resistant than a TiN coating. Coolant-through taps have holes that allow coolant to flow to their tip to reduce heat and friction during threading tasks. Powdered-metal with high-speed steel taps are an economical alternative to powdered-metal with cobalt taps.

Product Number: 33YJ62

SEND INQUIRY

  • Description
Mfr Model 1005301408
Thread Size 1/2"-13
Tap Material Powdered Metal
Tap Finish TiCN
Thread Length 7/8 in
Overall Length 4-5/16 in
Thread Limit H3
Number of Flutes 4
Tap Length Standard DIN
Tap Shank Standard ANSI
Primary Material Application Aluminum; Brass; Bronze; Cast Iron; Copper
Thread Direction Right Hand
Coolant Fed Coolant Through
Extended Neck Yes
Measurement System Fractional Inch
Primary Material Application ISO Code K; N
Shank Dia 23/64 in
Shank Length 2-3/8 in
Square Size 0.2740 in
Tap Chamfer Bottoming
Tap Style Straight Flute (Hand)
Threads per Inch 13
UNSPSC 23153305
Country of Origin Mexico (subject to change)
Thread Standard UNC
Shank Type Machining Straight
Spiral Direction Neutral
Thread Pitch 3.00mm
