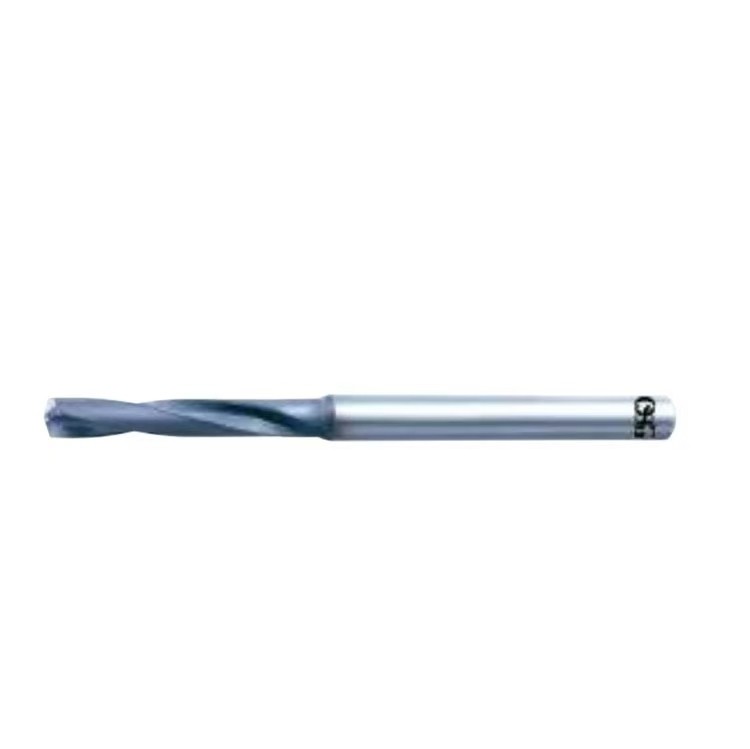

34YR10 Powdered-Metal Jobber-Length Drill Bits

$21.72

Bulk orders will be discounted, please contact us.

These bits have spiral flutes that evacuate chips as the bits drill into a workpiece. The bits have a V coating, which is a multilayer TiCN coating that protects the bits from wear and is harder and more wear-resistant than a TiN coating.

Product Number: 34YR10

Add to Wishlist Add to Compare

SEND INQUIRY

  • Description
Mfr Model 8612206
Measurement System Wire
Drill Bit Size #46
Decimal Equivalent 0.0810
Maximum Drilling Depth 24.00 mm
Overall Length 56.00 mm
Shank Type Machining Straight
Finish Machining V
Material Machining Powdered Metal
Primary Material Application Cast Iron; Hardened Steel; Nickel; Tool and Die Steel
UNSPSC 27112801
Country of Origin Japan (subject to change)
Cutting Direction Right Hand
Flute Length 24.00 mm
Flute Type Spiral
Standards Not Rated
Series 1950
Drill Bit Point Angle 130 °
Drill Bit Point Type X Thinning Point
Number of Flutes 2
Helix Angle 30°
Depth Dia Ratio 5xD
Shank Dia 3.00 mm
Primary Material Application ISO Code H; K; P; S
Drill Length Class Jobber Length
Sheeter Drill No
Shank Length 32.00 mm
Coolant Fed Non-Coolant Through
Drill Diameter Tolerance +0.000/-0.014 mm
Secondary Material Application Aluminum; Hardened Steel; Low Carbon Steel; Stainless Steel; Titanium
Secondary Material Application ISO Code H; M; N; P; S
