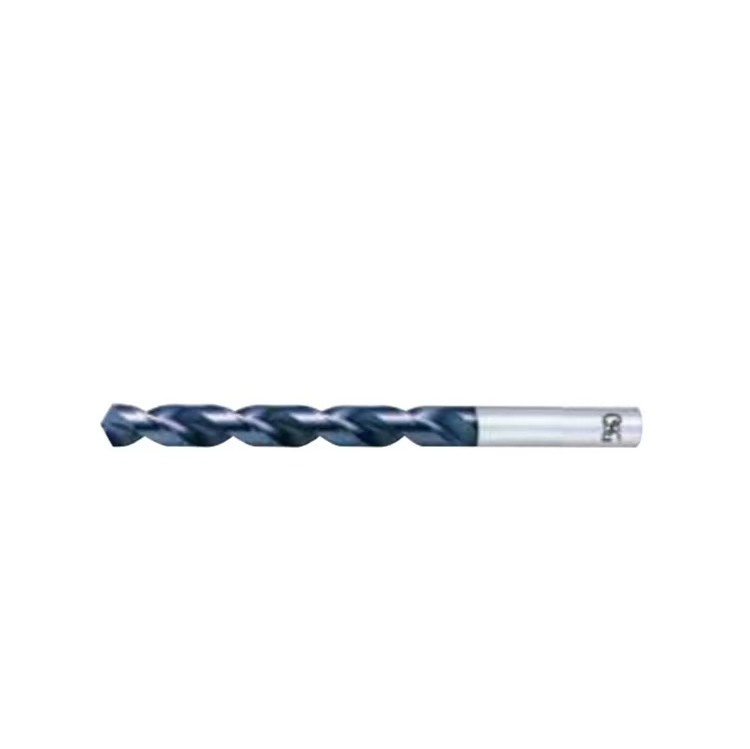

34YU91 Coolant-Through High-Speed Steel Jobber-Length Drill Bits

$463.01

Bulk orders will be discounted, please contact us.

The V coating on these drill bits is a multilayer TiCN coating that protects them from wear and is harder and more wear-resistant than a TiN coating. The bits have spiral flutes that evacuate chips as the bits drill into a workpiece.

Product Number: 34YU91

Add to Wishlist Add to Compare

SEND INQUIRY

  • Description
Mfr Model 17906208
Measurement System Fractional Inch
Drill Bit Size 29/32 in
Decimal Equivalent 0.9063
Maximum Drilling Depth 6-1/8 in
Overall Length 9-3/16 in
Shank Type Machining Straight
Finish Machining V
Material Machining High Speed Steel
Primary Material Application Stainless Steel; Steel
UNSPSC 27112801
Country of Origin Japan (subject to change)
Cutting Direction Right Hand
Flute Length 6-1/8 in
Flute Type Spiral
Standards Not Rated
Series 1700
Drill Bit Point Angle 130 °
Drill Bit Point Type R Thinning Point
Number of Flutes 2
Helix Angle 30°
Depth Dia Ratio 5xD
Shank Dia 1 in
Primary Material Application ISO Code M; P
Drill Length Class Jobber Length
Sheeter Drill No
Shank Length 78.00 mm
Coolant Fed Coolant Through
Drill Diameter Tolerance +0.000/-0.033 mm
Secondary Material Application Aluminum; Cast Iron; Die Steel; Hardened Steel; Stainless Steel; Titanium
Secondary Material Application ISO Code H; M; N; P; S
Number of Coolant Holes 2
