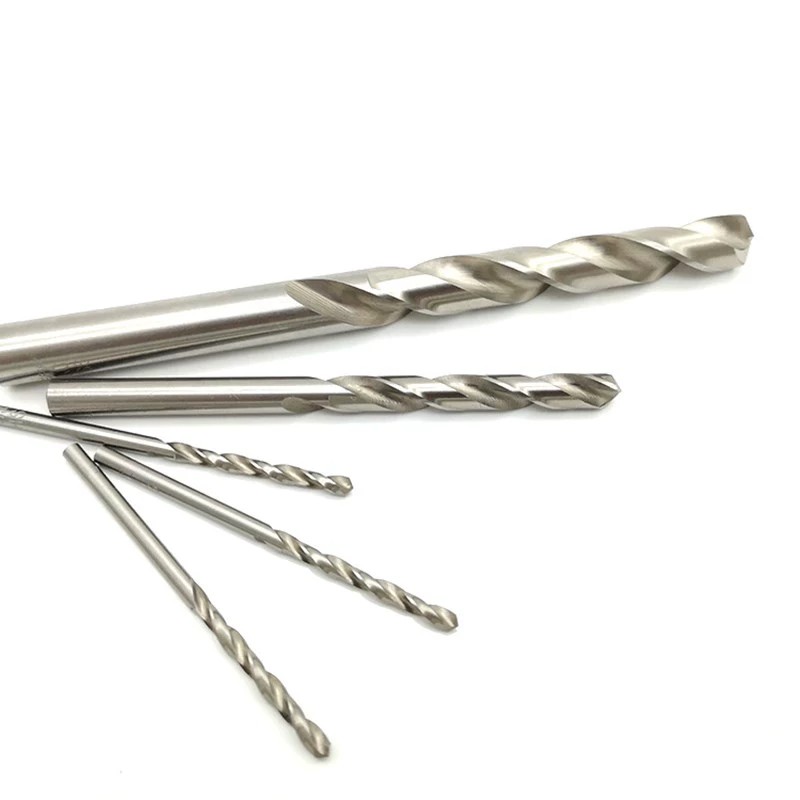

41AJ07 Carbide-Tipped Extended-Length Drill Bits

$5.83

Bulk orders will be discounted, please contact us.

These drill bits do not have coolant holes, so a separate hose is required to bring coolant to the bits' tip if it is needed. The bits' spiral flutes evacuate chips as the bits drill into a workpiece. The bright finish on these drill bits is not affected when their cutting edges are resharpened.

Product Number: 41AJ07

Add to Wishlist Add to Compare

SEND INQUIRY

  • Description
Mfr Model 13002031
Measurement System Fractional Inch
Drill Bit Size 13/64 in
Decimal Equivalent 0.2031
Maximum Drilling Depth 3-3/8 in
Overall Length 6 in
Shank Type Machining Straight
Finish Machining Bright (Uncoated)
Material Machining Carbide Tipped
Primary Material Application All Materials
UNSPSC 27112801
Country of Origin USA (subject to change)
Cutting Direction Right Hand
Flute Length 3-3/8 in
Flute Type Spiral
Standards Not Rated
Drill Bit Point Angle 118 °
Drill Bit Point Type Cam Relieved Point
Number of Flutes 2
Spiral Direction Right Hand
Depth Dia Ratio 15xD
Shank Dia 13/64 in
Primary Material Application ISO Code H; K; N
Material Grade Machining General Purpose
Drill Length Class Extra Long
Drill Point Length 1.55mm
Shank Length 2-5/8 in
Coolant Fed Non-Coolant Through
Drill Diameter Tolerance +0.0000 in /-0.0030 in
Web Construction Tapered
