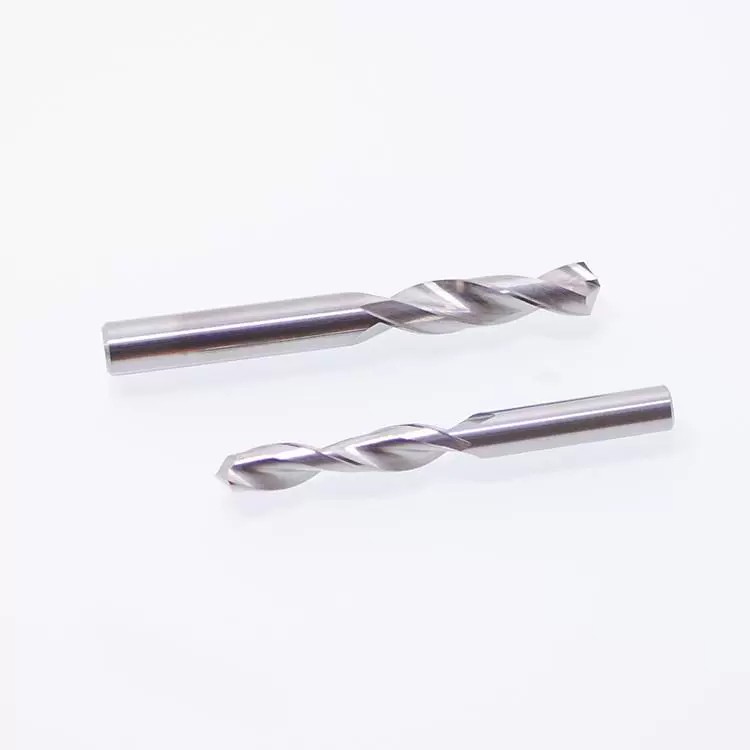

41AR13 Carbide-Tipped Screw-Machine Length Drill Bits

$162.52

Bulk orders will be discounted, please contact us.

The TiN coating on these drill bits protects them from wear and heat when drilling steel, stainless steel, and aluminum. These drill bits have holes that allow coolant to flow to their tip to reduce heat and help clear chips during drilling tasks. The bits' spiral flutes evacuate chips as the bits drill into a workpiece.

Product Number: 41AR13

SEND INQUIRY

  • Description
Mfr Model 29611250
Measurement System Fractional Inch
Drill Bit Size 1-1/8 in
Decimal Equivalent 1.1250
Overall Length 8-3/16 in
Shank Diameter 1 in
Shank Type Machining Straight
Finish Machining TiN
Material Machining Carbide Tipped
Primary Material Application All Materials
UNSPSC 27112801
Country of Origin USA (subject to change)
Cutting Direction Right Hand
Flute Length 5-11/26 in
Flute Type Spiral
Standards Not Rated
Drill Bit Point Angle 135 °
Drill Bit Point Type Helical Relieved Honed Point
Number of Flutes 2
Spiral Direction Right Hand
Depth Dia Ratio 4xD
Primary Material Application ISO Code H; K; M; N; P
Material Grade Machining High Performance
Drill Length Class Screw Machine Length
Drill Point Length 5.38 mm
Shank Length 2-3/4 in
Coolant Fed Coolant Through
Drill Diameter Tolerance +0.0000 in /-0.0010 in
Number of Coolant Holes 2
