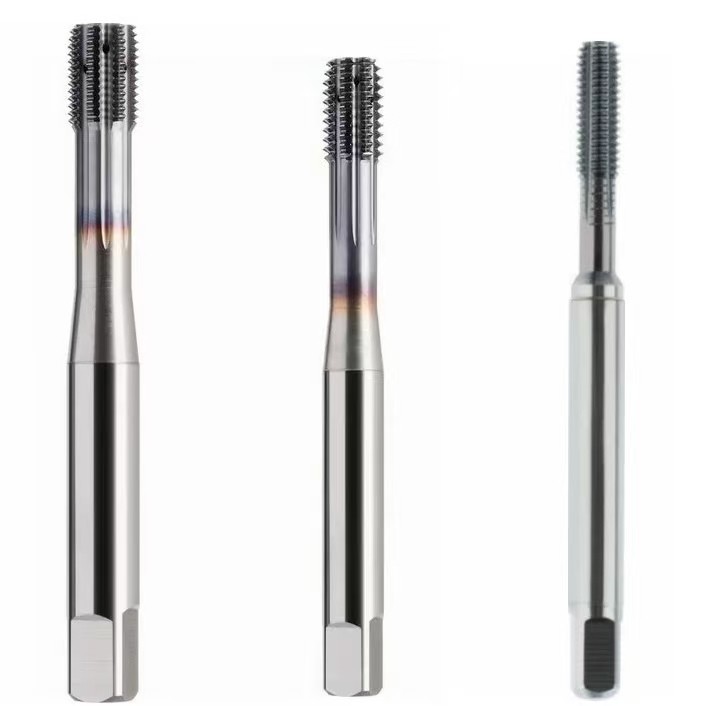

427J72 High-Performance Spiral-Point Taps for Cast Iron

$515.56

Bulk orders will be discounted, please contact us.

The TiCN coating on these taps protects them from wear and is harder and more wear-resistant than a TiN coating. Carbide taps provide excellent hardness and high-temperature resistance and are suitable for high-speed tapping. Carbide taps require a rigid setup because they are brittle.

Product Number: 427J72

Add to Wishlist Add to Compare

SEND INQUIRY

  • Description
Mfr Model 8126006-M16X1.5
Thread Size M16x1.5
Tap Material Carbide
Tap Finish TiCN
Thread Length 21.00 mm
Overall Length 100.00 mm
Thread Limit 6HX
Number of Flutes 5
Primary Material Application Cast Iron; Steel
Thread Direction Right Hand
Coolant Fed Non-Coolant Through
Drill Bit Size 14.80 mm
Extended Neck Yes
Measurement System Metric
Primary Material Application ISO Code K; P
Shank Dia 12.00 mm
Shank Length 42.00 mm
Square Size 9.00 mm
Tap Chamfer Plug
Tap Thread Size M16x1.50
UNSPSC 27112806
Country of Origin Germany (subject to change)
Thread Standard Metric Fine
Shank Type Machining Straight
Spiral Direction Neutral
Class of Fit 2B
Thread Pitch 1.50 mm
