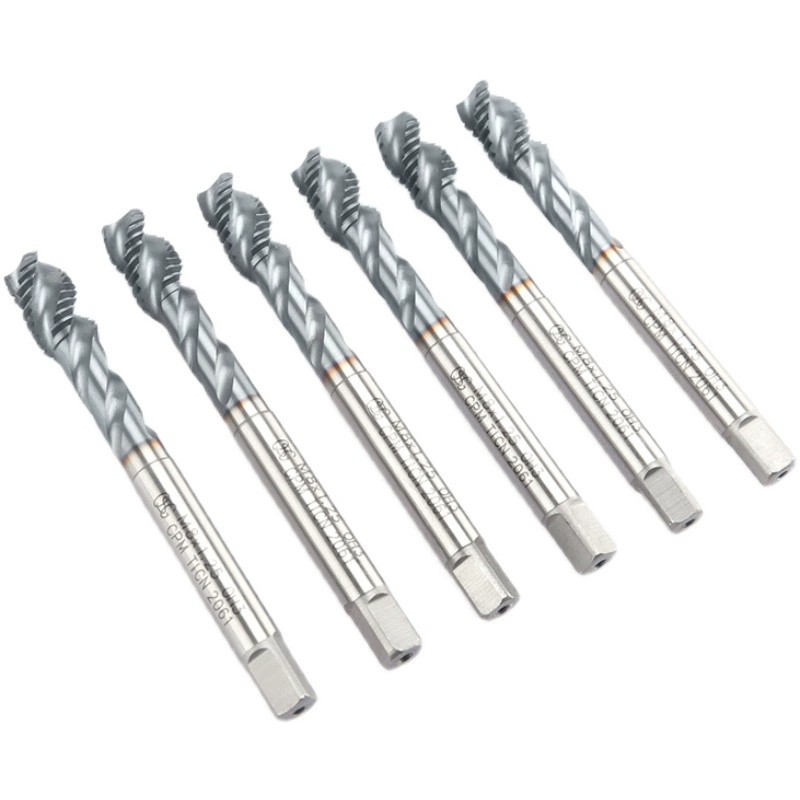

428M45 High-Performance Spiral-Flute Taps for Steel & Stainless Steel

$261.18

Bulk orders will be discounted, please contact us.

These taps are designed for tapping stainless steel. They have a black-oxide finish that retains lubricants to improve the taps' wear resistance and chip flow.

Product Number: 428M45

Add to Wishlist Add to Compare

SEND INQUIRY

  • Description
Mfr Model M20563-M30
Thread Size M30x3.5
Tap Material High Speed Steel
Tap Finish VAP
Thread Length 35.00 mm
Overall Length 180.00 mm
Thread Limit 6HX
Number of Flutes 5
Tap Length Standard DIN
Tap Shank Standard DIN 376
Primary Material Application Stainless Steel
Thread Direction Right Hand
Coolant Fed Non-Coolant Through
Drill Bit Size 26.50mm
Extended Neck Yes
Helix Angle 40 °
Material Grade Machining VAP
Measurement System Metric
Primary Material Application ISO Code M
Shank Dia 22.00 mm
Shank Length 65.00 mm
Square Size 18.00mm
Standards DIN 376
Tap Chamfer Modified Bottoming; Semi-Bottoming
Tap Style Spiral Flute
Tap Thread Size M30x3.50
Threads per Inch 16
UNSPSC 27112806
Country of Origin Germany (subject to change)
Thread Standard Metric Coarse
Features For Long Chipping Materials
Shank Type Machining Straight
Secondary Material Application Steel
Secondary Material Application ISO Code P
Spiral Direction Right Hand
Class of Fit 2B
Thread Pitch 3.50mm
Powdered Metal Base Material Cobalt
