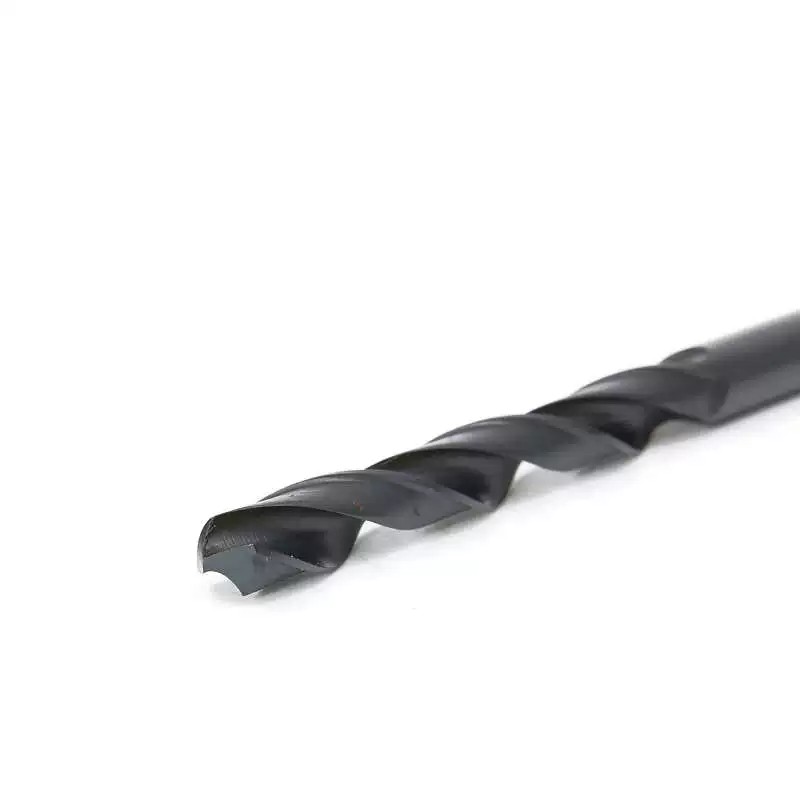

434A18 Non-Coolant-Through High-Speed Steel Jobber-Length Drill Bits

$4.41

Bulk orders will be discounted, please contact us.

Wire-size drill bits come in standard sizes that correspond to American Wire Gauge (AWG) sizes. The larger the wire size, the smaller the bit. These drill bits have a bright finish that is not affected when the bits' cutting edges are resharpened, and they have spiral flutes that evacuate chips as the bits drill into a workpiece. The bits' straight shank installs into a drill chuck or similar toolholder.

Product Number: 434A18

SEND INQUIRY

  • Description
Mfr Model 41082
Cutting Direction Right Hand
Finish Machining Bright (Uncoated)
Measurement System Wire
Material Machining High Speed Steel
Drill Bit Point Angle 135 °
Drill Bit Point Type Split Point
Primary Material Application Steel
Coolant Fed Non-Coolant Through
Depth Dia Ratio 8xD
Flute Type Spiral
Standards ANSI
UNSPSC 27112801
Country of Origin USA (subject to change)
Drill Length Class Jobber Length
Spiral Direction Right Hand
Drill Bit Size #12
Decimal Equivalent 0.189
Number of Flutes 2
Flute Length 2-5/16 in
Shank Type Machining Straight
Shank Length 1-3/16 in
Overall Length 3-1/2 in
Drill Point Length 0.0391 in
Drill Diameter Tolerance +0.0000 in/-0.0007 in
Sheeter Drill No
Material Grade Machining High Performance
Primary Material Application ISO Code P
Secondary Material Application Non Ferrous Material
Secondary Material Application ISO Code M
Series 150WLP
Maximum Drilling Depth 1-47/64 in
Helix Angle 35° to 45°
Aircraft Drill No
Web Thinning Thinned
