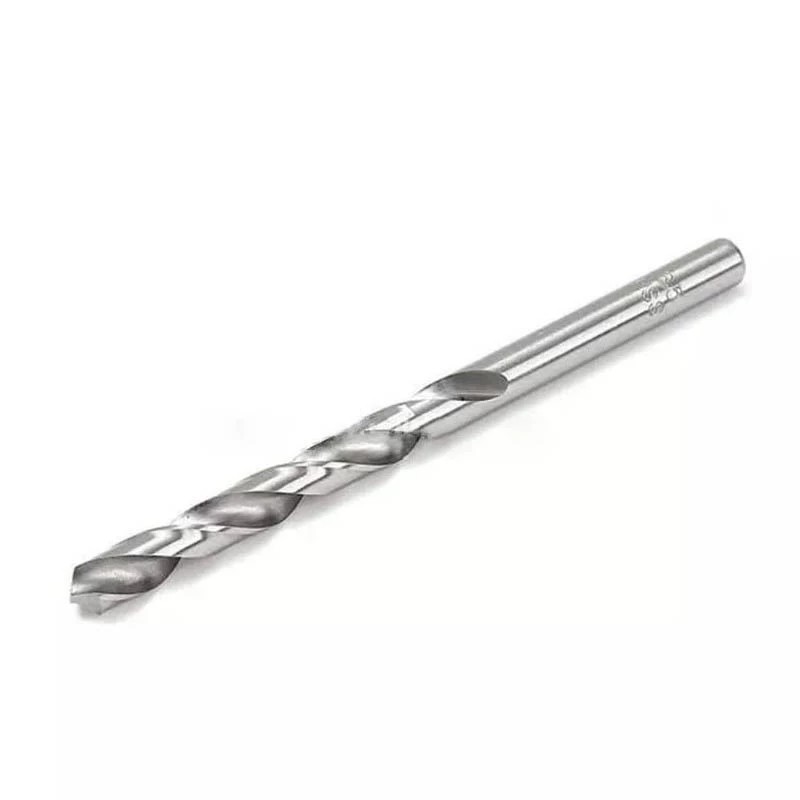

434T26 Left-Hand Non-Coolant-Through High-Speed Steel Jobber-Length Drill Bits

$8.51

Bulk orders will be discounted, please contact us.

These drill bits have a bright finish that is not affected when the bits' cutting edges are resharpened. They also have spiral flutes that evacuate chips as the bits drill into a workpiece.

Product Number: 434T26

Add to Wishlist Add to Compare

SEND INQUIRY

  • Description
Mfr Model C01538
Measurement System Fractional Inch
Drill Bit Size 17/64 in
Decimal Equivalent 0.2656
Maximum Drilling Depth 1-1/16 in
Overall Length 4-1/8 in
Shank Type Machining Straight
Finish Machining Bright (Uncoated)
Material Machining High Speed Steel
Primary Material Application Aluminum; Brass; Bronze; Cast Iron; Copper; Steel
UNSPSC 27112801
Country of Origin USA (subject to change)
Cutting Direction Left Hand
Flute Length 2-7/8 in
Flute Type Spiral
Standards ASME B94.11M
Series 2006
Drill Bit Point Angle 118 °
Drill Bit Point Type Conventional Point
Number of Flutes 2
Spiral Direction Left Hand
Helix Angle 21° to 34°
Depth Dia Ratio 4xD
Shank Dia 17/64 in
Primary Material Application ISO Code K; N; P
Material Grade Machining High Performance
Drill Length Class Jobber Length
Drill Point Length 0.0798 in
Shank Length 1-1/4 in
Coolant Fed Non-Coolant Through
Drill Diameter Tolerance +0.0000 in /-0.0010 in
