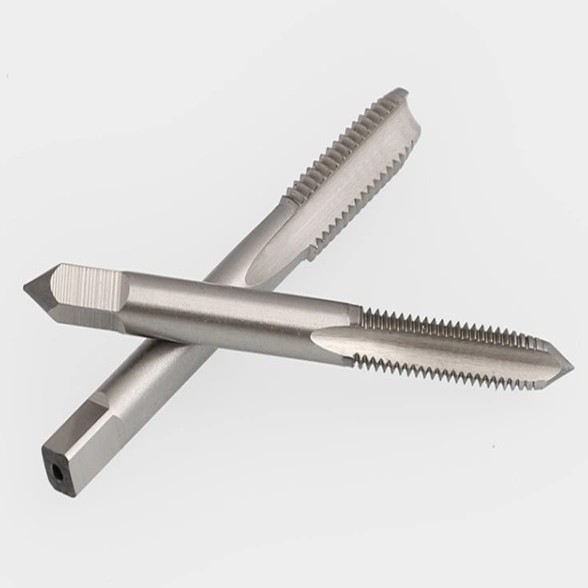

435N15 High-Speed Steel Straight-Flute Hand Taps

$10.43

Bulk orders will be discounted, please contact us.

The bright finish on these taps provides a smooth, polished surface.

Product Number: 435N15

SEND INQUIRY

  • Description
Mfr Model C54546
Thread Size M8x1.25
Tap Material High Speed Steel
Tap Finish Bright (Uncoated)
Thread Length 17.53 mm
Overall Length 69.09 mm
Thread Limit D5
Number of Flutes 4
Tap Length Standard USCTI
Tap Shank Standard USCTI
Primary Material Application All Materials
Thread Direction Right Hand
Coolant Fed Non-Coolant Through
Extended Neck Yes
Measurement System Metric
Primary Material Application ISO Code H; K; M; N; O; P; S
Shank Dia 8.08 mm
Shank Length 40.48 mm
Square Size 6.05 mm
Standards USCTI TABLE 302A
Tap Chamfer Taper
Tap Style Straight Flute (Hand)
Threads per Inch 24
UNSPSC 27112806
Country of Origin USA (subject to change)
Thread Standard Metric
Shank Type Machining Straight
Secondary Material Application Aluminum; Brass; Bronze; Cast Iron; Copper; Steel
Secondary Material Application ISO Code K; M; N; P
Spiral Direction Neutral
Class of Fit 6H
Thread Pitch 1.25mm
