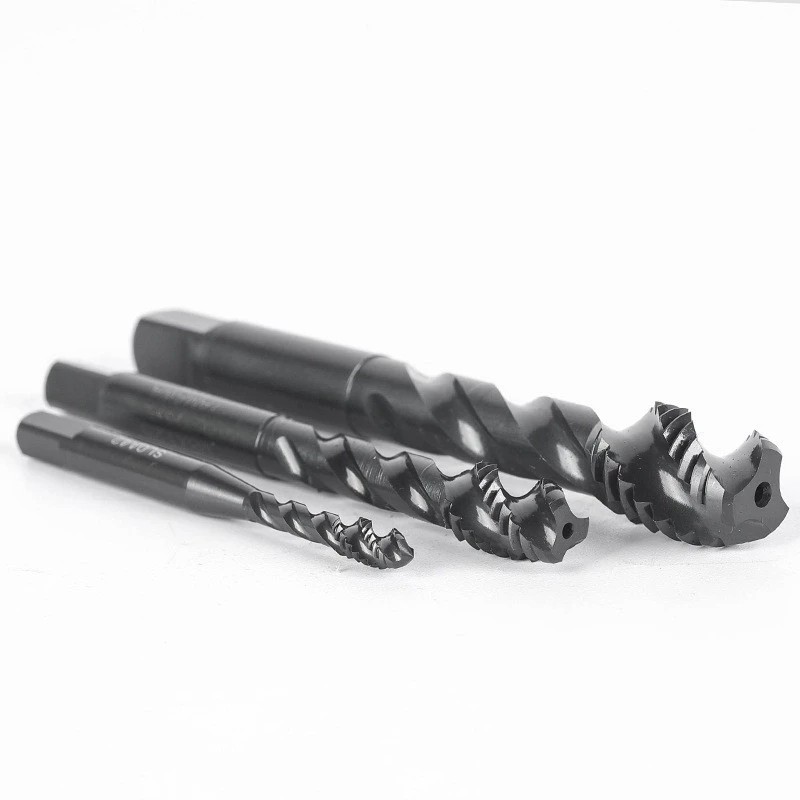

445J41 High-Performance Spiral-Flute Taps for Multiple Materials

$25.71

Bulk orders will be discounted, please contact us.

The TiN coating on these taps protects them from wear and allows them to be used at higher speeds than taps with a bright finish.

Product Number: 445J41

Mfr Model	VTSFT-TC6718
Thread Size	M8x1.25
Tap Material	High Speed Steel
Thread Length	13.00 mm
Overall Length	90.00 mm
Thread Limit	6H
Number of Flutes	3
Tap Shank Standard	DIN 371
Primary Material Application	Steel
Thread Direction	Right Hand
Coolant Fed	Non-Coolant Through
Extended Neck	Yes
Helix Angle	45 °
Material Grade Machining	WU41EG
Measurement System	Metric
Primary Material Application ISO Code	P
Shank Dia	8.00 mm
Shank Length	53.00 mm
Square Size	6.20mm
Standards	DIN 371
Tap Chamfer	Semi-Bottoming
Tap Style	Spiral Flute
Tap Thread Size	M8x1.25
Threads per Inch	4-1/2
UNSPSC	23153305
Country of Origin	Italy (subject to change)
Thread Standard	Metric
Features	Tapping Blind Hole
Shank Type Machining	Straight
Secondary Material Application	Aluminum; Brass; Bronze; Cast Iron; Copper; Stainless Steel
Secondary Material Application ISO Code	K; M; N
Spiral Direction	Right Hand
Class of Fit	6H
Thread Pitch	1.25mm
