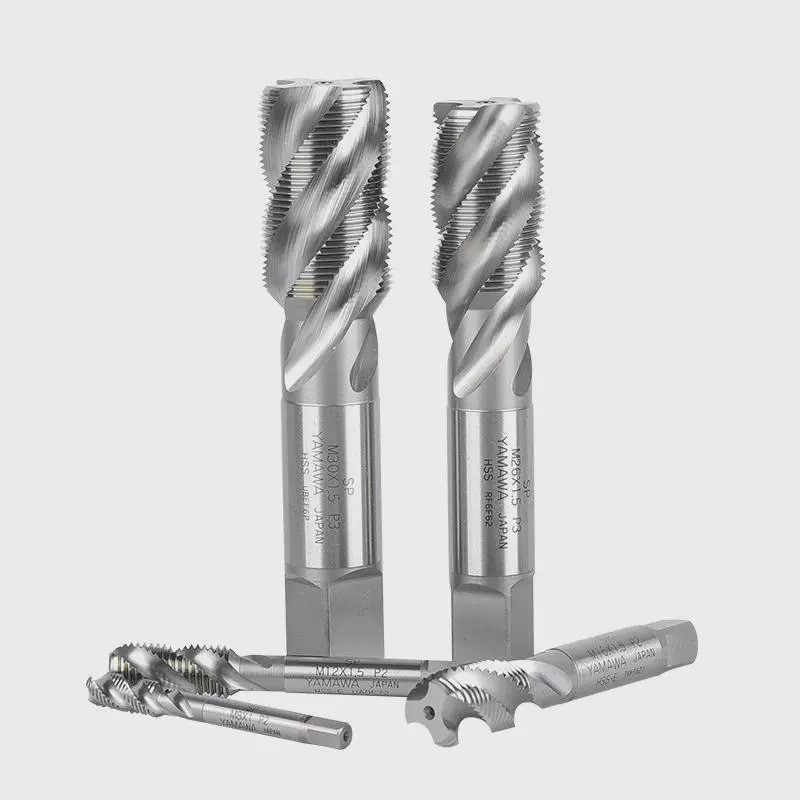

4CPK4 General Purpose Spiral-Flute Taps

$42.55

Bulk orders will be discounted, please contact us.

The bright finish on these taps provides a smooth, polished surface.

Product Number: 4CPK4

Mfr Model	16047
Thread Size	5/8"-11
Tap Material	High Speed Steel
Tap Finish	Bright (Uncoated)
Thread Length	1-3/32 in
Overall Length	3-13/16 in
Thread Limit	H3
Number of Flutes	4
Tap Length Standard	JIS
Tap Shank Standard	ANSI
Primary Material Application	Aluminum; Brass; Bronze; Copper
Thread Direction	Right Hand
Coolant Fed	Non-Coolant Through
Drill Bit Size	0.3101 in; 0.3141 in; 0.3182 in; 0.3222 in; 0.3263 in
Extended Neck	Yes
Helix Angle	52 °
Material Grade Machining	Bright
Measurement System	Fractional Inch
Primary Material Application ISO Code	N
Shank Dia	15/32 in
Shank Length	2-23/32 in
Square Size	0.3600 in
Standards	ANSI
Tap Chamfer	Plug
Tap Style	Spiral Flute
Tap Thread Size	5/8"-11
Threads per Inch	11
UNSPSC	23153305
Country of Origin	USA (subject to change)
Thread Standard	UNC
Features	HSSE; Slow Spiral; Spiral Flute; Steam Oxide Surface Treatment; TiCN Coating
Shank Type Machining	Straight
Secondary Material Application	Aluminum; Cast Iron; Steel
Secondary Material Application ISO Code	K; N; P
Spiral Direction	Right Hand
Class of Fit	3B
Thread Pitch	0.70mm
