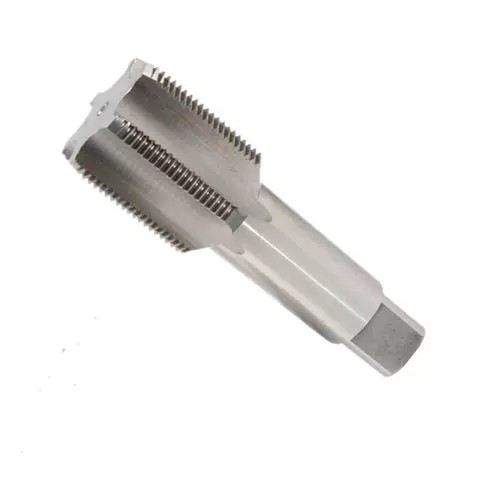

4EYP1 Straight-Flute STI Taps

$15.38

Bulk orders will be discounted, please contact us.

High-speed steel STI taps provide good wear resistance in general purpose tapping applications in a range of materials. These taps have a bright finish that provides a smooth, polished surface.

Product Number: 4EYP1

Add to Wishlist Add to Compare

SEND INQUIRY

  • Description
Mfr Model 4FPB
Thread Size 1/4"-28
Tap Material High Speed Steel
Tap Finish Bright (Uncoated)
Thread Length 1-1/8 in
Overall Length 2-23/32 in
Thread Limit H2
Number of Flutes 3
Thread Direction Right Hand
Extended Neck Yes
Measurement System Fractional Inch
Shank Dia 5/16 in
Standards ANSI; ISO 14001; ISO 9001; OS 9000
Tap Chamfer Plug
Tap Style Straight Flute (Hand)
Tap Thread Size 1/4"-28
Threads per Inch 28
UNSPSC 23153305
Country of Origin USA (subject to change)
Thread Standard UNF
Features The Sti Taps Supplied For Standard Thread Repair Look Like Conventional Taps And May Be Used With The Same Tap Handle As Conventional Taps
Shank Type Machining Straight
Spiral Direction Neutral
