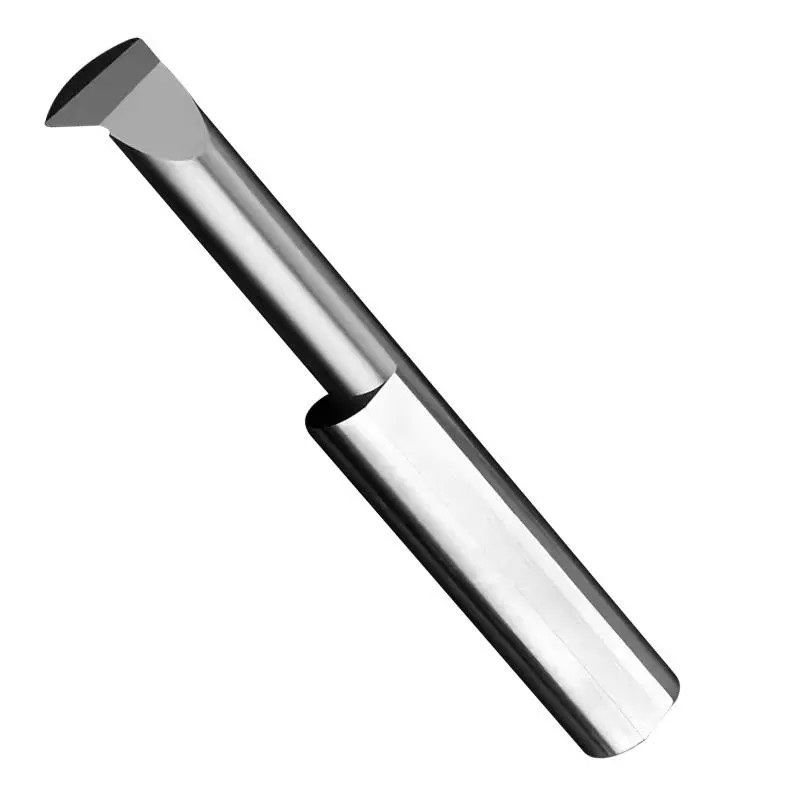

4LHR5 Internal Threading Tools

$27.43

Bulk orders will be discounted, please contact us.

Product Number: 4LHR5

Mfr Model	MIR 3 L15 A60 BXC
Cutter Material	Carbide
Center to Cutting Tip	1.40mm
Cutting Application	Threading
Overall Length	39.00mm
Shank Dia	3.00mm
Finish Machining	TiN
UNSPSC	23172013
Country of Origin	Israel (subject to change)
Coolant Fed	Coolant Through
For Use With	Holder SIM...H3
Measurement System	Metric
Shank Material	Carbide
Primary Material Application	Cast Iron; Stainless Steel; Steel
Primary Material Application ISO Code	K; M; P
Manufacturer Grade	BXC
Thread Direction	Right Hand
Included Angle	60 °
Max Hole Depth	15.00mm
Min Teeth per Inch	24
Max Thread Pitch	1.00mm
Max Threads per Inch	32
Min Hole Dia	3.20mm
Thread Profile Type	Partial
Thread Standard	Partial Profile 60°
