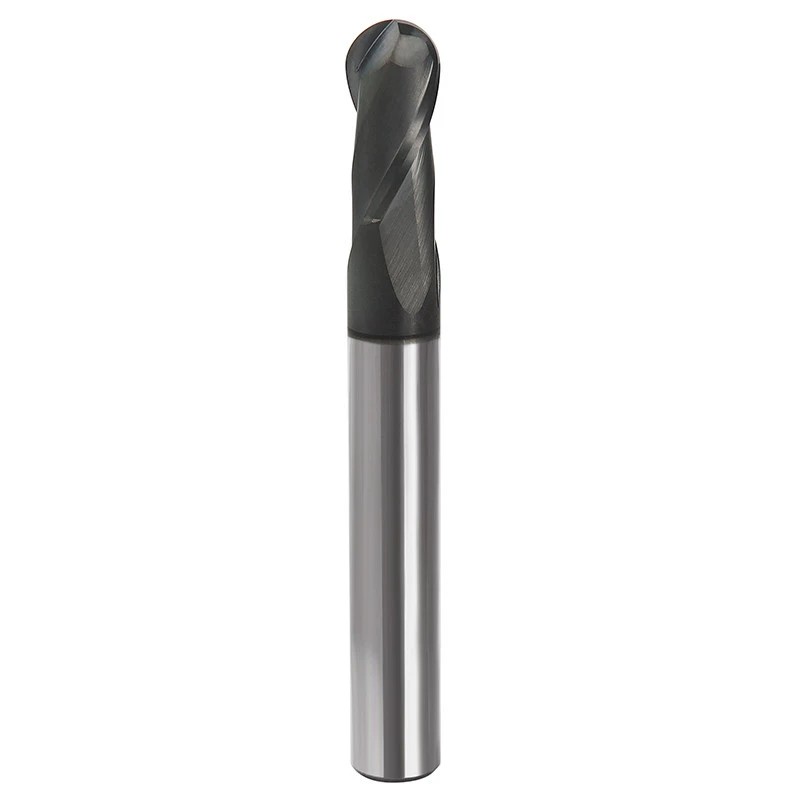

54LJ07 High-Performance Finishing Carbide Ball End Mills

$89.35

Bulk orders will be discounted, please contact us.

The WXS coating on these end mills protects them from wear and provides maximum heat resistance when milling nickel-based alloys and hardened steels with a Rockwell hardness of more than 50 HRC. It is harder and has a higher oxidation temperature than a TiAlN coating.

Product Number: 54LJ07

Add to Wishlist Add to Compare

SEND INQUIRY

  • Description
Mfr Model 45130005
Material Machining Carbide
Finish Machining WXS
Measurement System Metric
Milling Dia 6 mm
Length of Cut 3 mm
Overall Length 90 mm
Shank Dia 6 mm
Shank Type Machining Straight
End Mill Style Ball Nose
Number of Flutes 2
End Mill Application Finishing
Drilling Tool Configuration Individual
End Mill Cutting Type Center Cutting
List Number 4513
Material Grade Machining Micrograin
Primary Material Application Cast Iron; Hardened Steel; Steel; Tool and Die Steel
Primary Material Application ISO Code H; K; P
UNSPSC 23172005
Country of Origin Japan (subject to change)
Material Applications Graphite, Wrought Aluminum, Bakelite, Plastics, Wood, Brass
Spiral Direction Right Hand
Coolant Fed Non-Coolant Through
Secondary Material Application Aluminum
Secondary Material Application ISO Code N
Helix Angle 30 °
Cutting Direction Right Hand
Chip Breaker No
Neck Length 30.00 mm
