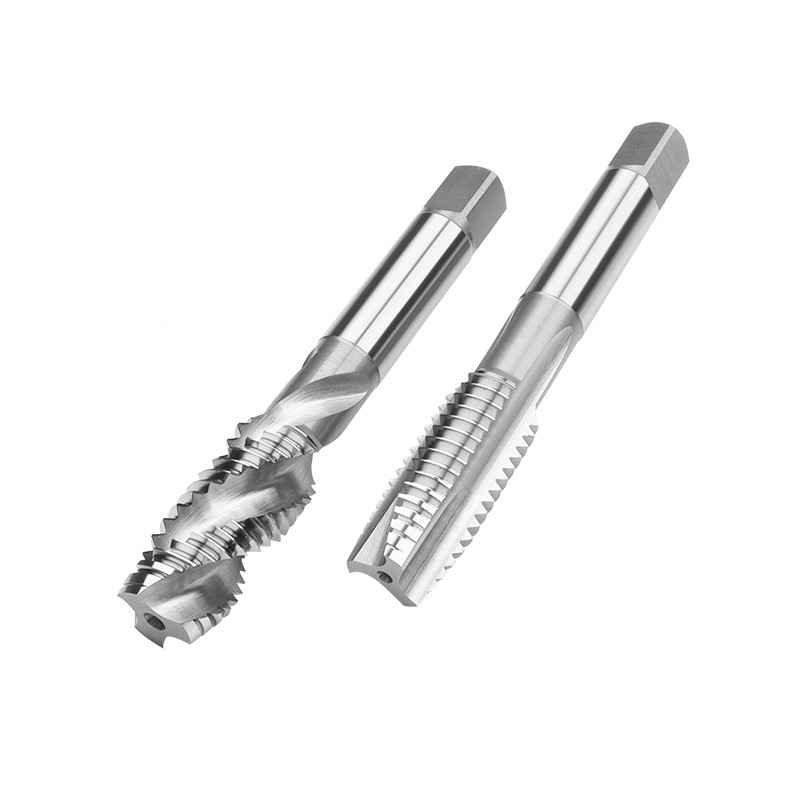

54LL61 Spiral-Point STI Taps

$35.01

Bulk orders will be discounted, please contact us.

The TiCN coating on these taps protects them from wear and is harder and more wear-resistant than a TiN coating. These taps are made from powdered metal, which has a uniform microstructure and grain distribution that gives the material a similar strength as carbide. Powdered-metal taps are tougher and less likely to break than cobalt and high-speed steel taps.

Product Number: 54LL61

Add to Wishlist Add to Compare

SEND INQUIRY

  • Description
Mfr Model 31440608
Thread Size 1/4"-28
Tap Material Powdered Metal
Tap Finish TiCN
Thread Length 11/16 in
Overall Length 2-23/32 in
Thread Limit H3
Number of Flutes 3
Primary Material Application Titanium
Thread Direction Right Hand
Coolant Fed Non-Coolant Through
Extended Neck Yes
Material Grade Machining 314TI
Measurement System Fractional Inch
Primary Material Application ISO Code S
Shank Dia 5/16 in
Shank Length 1-19/32 in
Square Size 0.2380 in
Standards DIN 2184-1
Tap Chamfer Plug
Tap Style Spiral Point
Tap Thread Size 1/4"-28
Threads per Inch 28
UNSPSC 23153305
Country of Origin Japan (subject to change)
Thread Standard UNF
Features DIN Overall Length; OSG V-coating; Powdered Metal VC-10 Substrate; Spiral Point; STI Spiral Point Gun Tap for Titanium Alloys
Shank Type Machining Straight
Secondary Material Application Hardened Steel; Nickel; Stainless Steel; Steel; Titanium
Secondary Material Application ISO Code H; M; P; S
Spiral Direction Neutral
Class of Fit 3B
Thread Pitch 1.25mm
