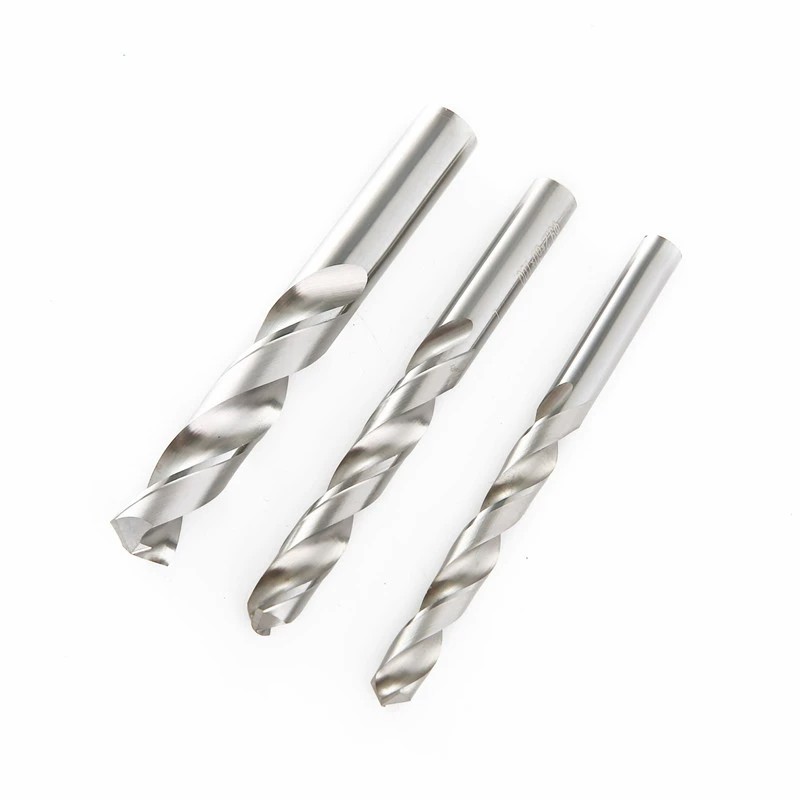

54LX57 Solid Carbide Screw-Machine Length Drill Bits

$227.96

Bulk orders will be discounted, please contact us.

The WXL coating on these drill bits protects them from wear and is designed for drilling nonferrous metals and steels with a Rockwell hardness of up to 50 HRC. It is harder and has a higher oxidation temperature than a TiAlN coating. These drill bits have holes that allow coolant to flow to their tip to reduce heat and help clear chips during drilling. Spiral-flute drill bits evacuate chips as the bits drill into a workpiece.

Product Number: 54LX57

Add to Wishlist Add to Compare

SEND INQUIRY

  • Description
Mfr Model 8666700
Measurement System Metric
Drill Bit Size 17.00 mm
Decimal Equivalent 0.6693
Overall Length 150.00 mm
Shank Diameter 17 mm
Shank Type Machining Straight
Finish Machining WXL
Material Machining Carbide
Primary Material Application Cast Iron; Stainless Steel; Steel; Titanium
UNSPSC 27112801
Country of Origin Japan (subject to change)
Cutting Direction Right Hand
Flute Length 85.00 mm
Flute Type Spiral
Standards Not Rated
Drill Bit Point Angle 140 °
Drill Bit Point Type R Thinning Point
Number of Flutes 2
Spiral Direction Right Hand
Depth Dia Ratio 3xD
Primary Material Application ISO Code K; M; P; S
Material Grade Machining High Performance
Drill Length Class Screw Machine Length
Sheeter Drill No
Drill Point Length 0.442 mm
Shank Length 65.00 mm
Coolant Fed Coolant Through
Drill Diameter Tolerance +0.000/-0.027mm
Secondary Material Application Alloy Steel; Aluminum; Hardened Steel; High Carbon Steel
Secondary Material Application ISO Code H; N; P
Number of Coolant Holes 2
Web Construction Split
