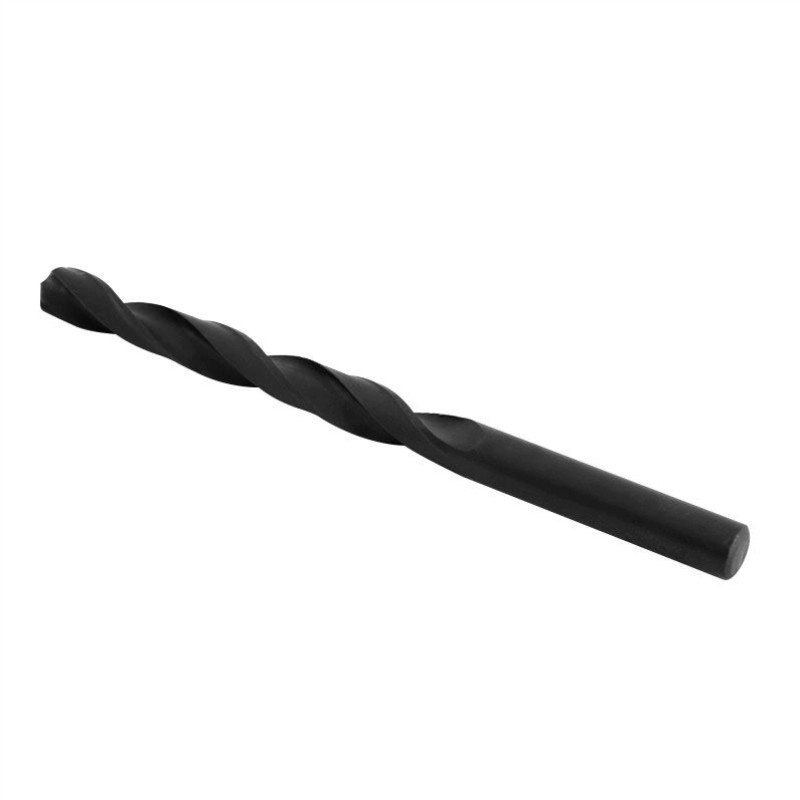

5UDL2 Mechanics-Length Drill Bits

$7.86

Bulk orders will be discounted, please contact us.

The black-and-gold-oxide finish on these drill bits lubricates the drill bit and provides some resistance to wear and rust. The bits are made from high-speed steel, which provides some flexibility and absorbs some shock and vibration.

Product Number: 5UDL2

Add to Wishlist Add to Compare

SEND INQUIRY

  • Description
Mfr Model 5UDL2
Measurement System Fractional Inch
Drill Bit Size 7/16 in
Decimal Equivalent 0.4375
Maximum Drilling Depth 2 in
Overall Length 4-1/2 in
Shank Type Machining Straight with Three Flats
Finish Machining Black & Gold
Material Machining High Speed Steel
Primary Material Application Cast Iron; Steel
UNSPSC 27112801
Country of Origin USA (subject to change)
Cutting Direction Right Hand
Flute Length 2-15/16 in
Flute Type Spiral
Standards Not Rated
Drill Bit Point Angle 135 °
Drill Bit Point Type Split Point
Number of Flutes 2
Spiral Direction Right Hand
Helix Angle 28 °
Depth Dia Ratio 4xD
Shank Dia 3/8 in
Primary Material Application ISO Code K; P
Material Grade Machining General Purpose
Drill Length Class Mechanics Length
Shank Length 1-5/8 in
Coolant Fed Non-Coolant Through
