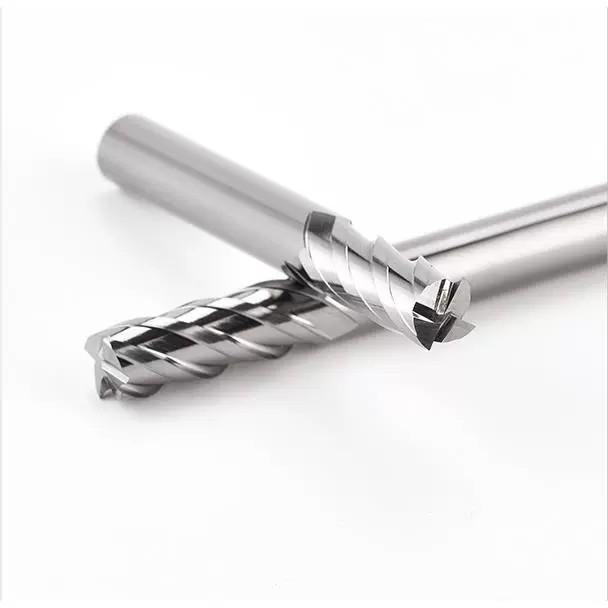

61LD90 High-Performance Finishing Carbide Square End Mills

$13.38

Bulk orders will be discounted, please contact us.

The EXO coating on these end mills is a multilayered TiAlN coating with a very smooth finish. It resists wear better than a standard TiAlN coating. EXO-coated end mills can be used at high speeds and withstand high temperatures.

Product Number: 61LD90

Add to Wishlist Add to Compare

SEND INQUIRY

  • Description
Mfr Model VGM5-0003
Length of Cut 1/4 in
Overall Length 1-1/2 in
Measurement System Fractional Inch
Number of Flutes 5
End Mill Style Square
Primary Material Application Cast Iron; Hardened Steel; Heat-Resistant Alloy; Stainless Steel; Steel
End Mill Cutting Type Center Cutting
List Number VGM5
Helix Angle 40 °
Cutting Direction Right Hand
Coolant Fed Non-Coolant Through
Drilling Tool Configuration Individual
UNSPSC 27112803
Country of Origin USA (subject to change)
Shank Type Shrink Fit
Material Carbide
Finish EXO
Milling Diameter 1/8 in
Shank Diameter 1/8 in
End Mill Application Finishing
Material Grade High Performance
Primary Material Application ISO Code H, K, M,P, S
Spiral Direction Right Hand
Secondary Material Application Hardened Steel
Secondary Material Application ISO Code H
Flute Type Helical
Max Helix Angle 40 °
For Material Hardness 0 to 45 HRC
